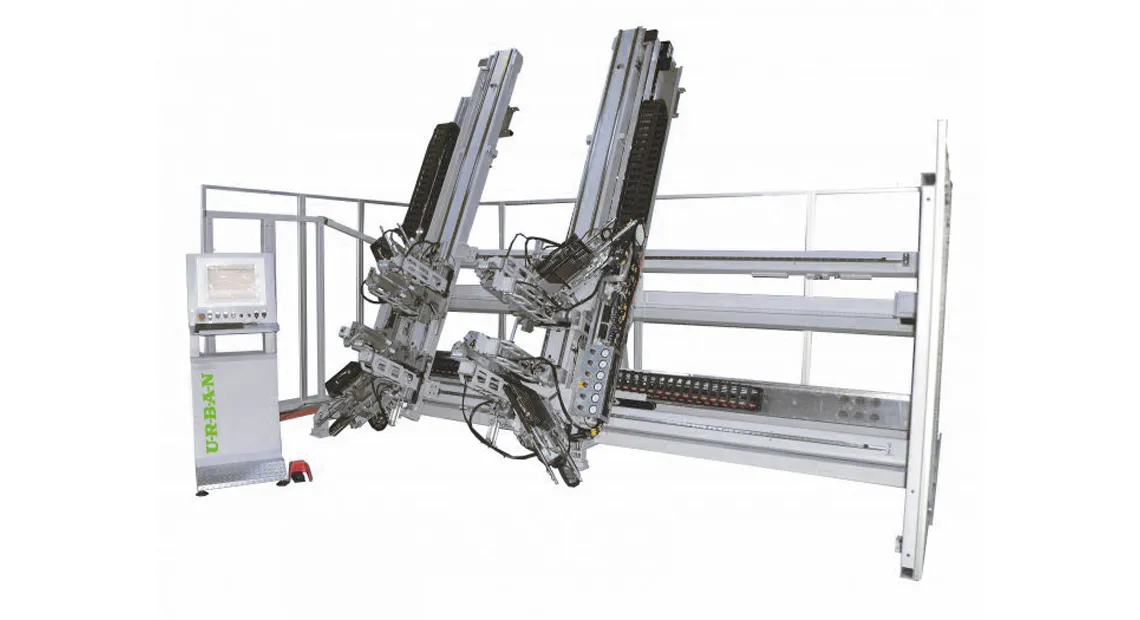

Vertical 4-Point Welding Machine
Economic vertical welder for vinyl window frame or sash profiles. Standard parallel welding.
The welding heads are equipped with four right-angled welding heads in a vertical configuration and are positioned using a precise motion control system.
Features
- Welde seam limit is 2.0 mm (0.79″)
- Digitally controlled temperatures
- Rear stops, vertical profile loading
- Manual loading and unloading only
- The machine is not tiltable and cannot be automatically unloaded
- Quick-change system for welding fixtures (custom welding fixtures NOT included)
- Parallel welding with inline centering plate and heating plate for side-wing welding
- The lower welding heads are fixed, which facilitates profile loading

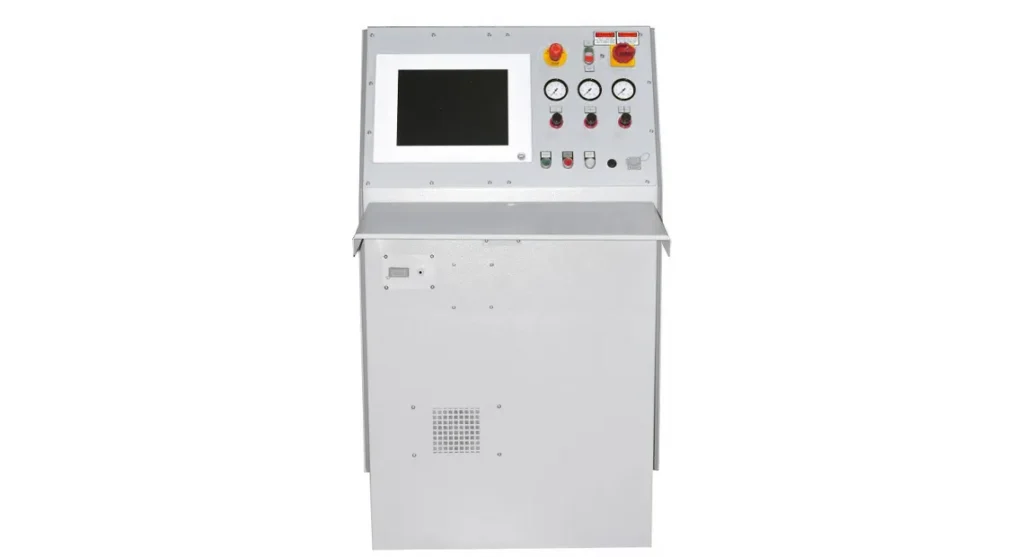

- 15″ industrial touchscreen PC with Windows user interface.
- Data entry via manual keyboard input or download from USB flash drive or Network connection
- Barcode reading available on request
- Easier for operators of all sizes.
