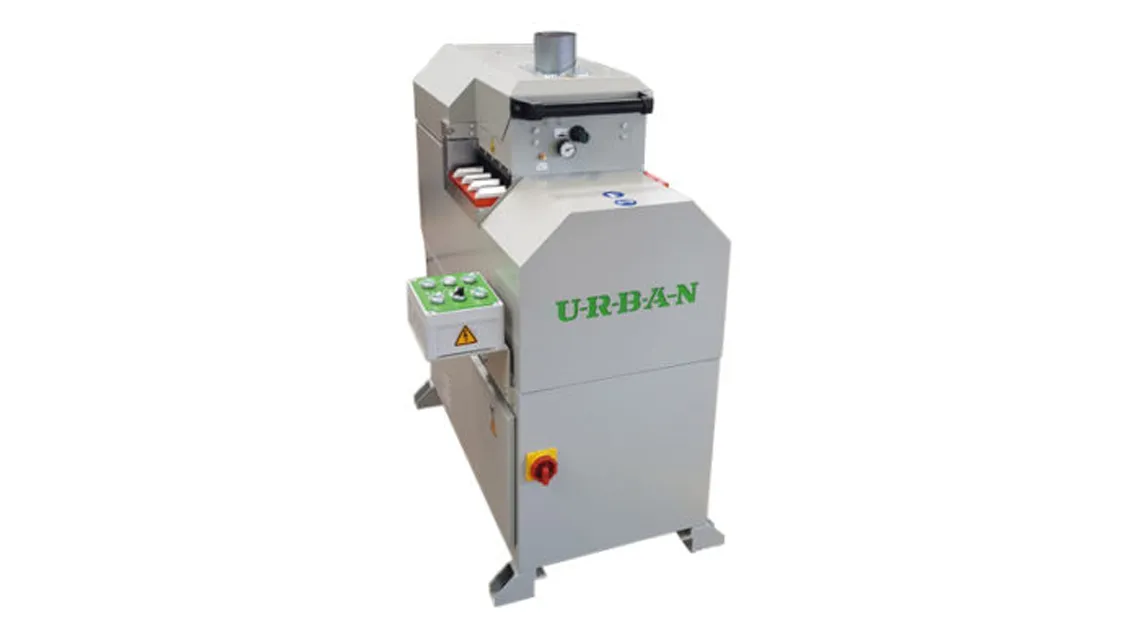

Glazing Bead Saw
Available Models
- GLS 200/S with automatic feed + glass simulation
Options
- Exhaust system URB 2200-2 (required for GLS 200/S)
- Profile-dependent limiters
- Profile support: 3m or 6m
- Handheld measuring device: 1.5m and 3m
- Electronic servo length stop
- Frequency inverter for speed control (for GLS 200/S)

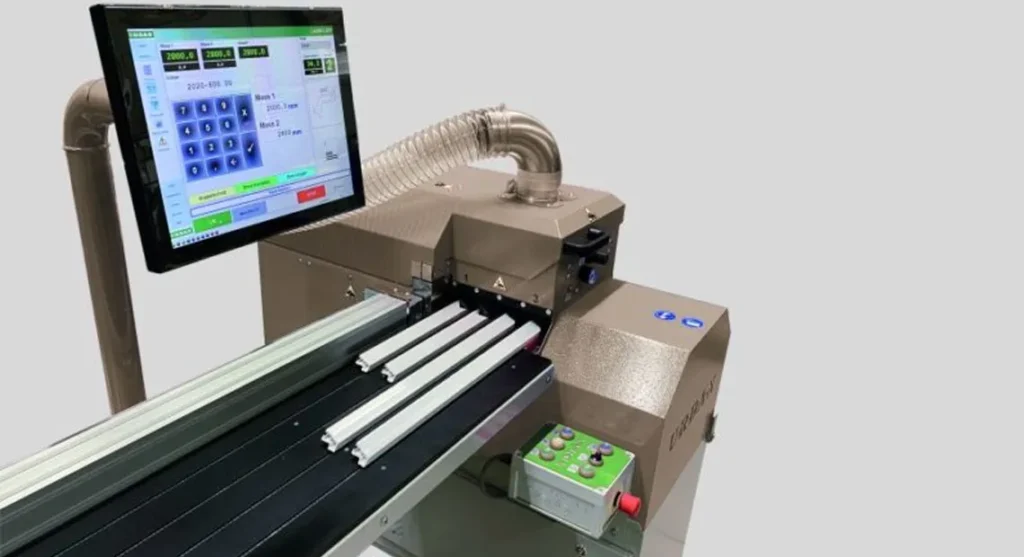

With our GLS 200/S profile saw for cutting two PVC profiles at a 45° angle, we have developed a very robust and flexible saw that is easy to maintain. It also offers excellent value for money and perfectly meets your production requirements. 1/2 3/4 5/6 6/8 7/10 15/20 15/25 20/30 1/25 …20/30 1/25 20/30 1/25 20/30 1/25 20/30 1/25 20/30 1/25 20/30 1/25 20/30 1/25 20/30 Clamping sequence freely selectable via switch. Wiper rings on the guide carriage prevent residue from entering the bearings and ball bushings. This extends the service life of the saw in your production.
With this saw, you can generally cut two strips simultaneously. The GLS 200/S even offers the option of cutting four strips in a single operation. This guarantees efficiency and helps save valuable production time, while the automatic feed ensures consistently high processing quality. Additionally, the GLS 200/S is equipped with a glass simulation unit featuring a 10-position turret stop, which simulates clamping the strips in their glazed state. The saw blades are included.
