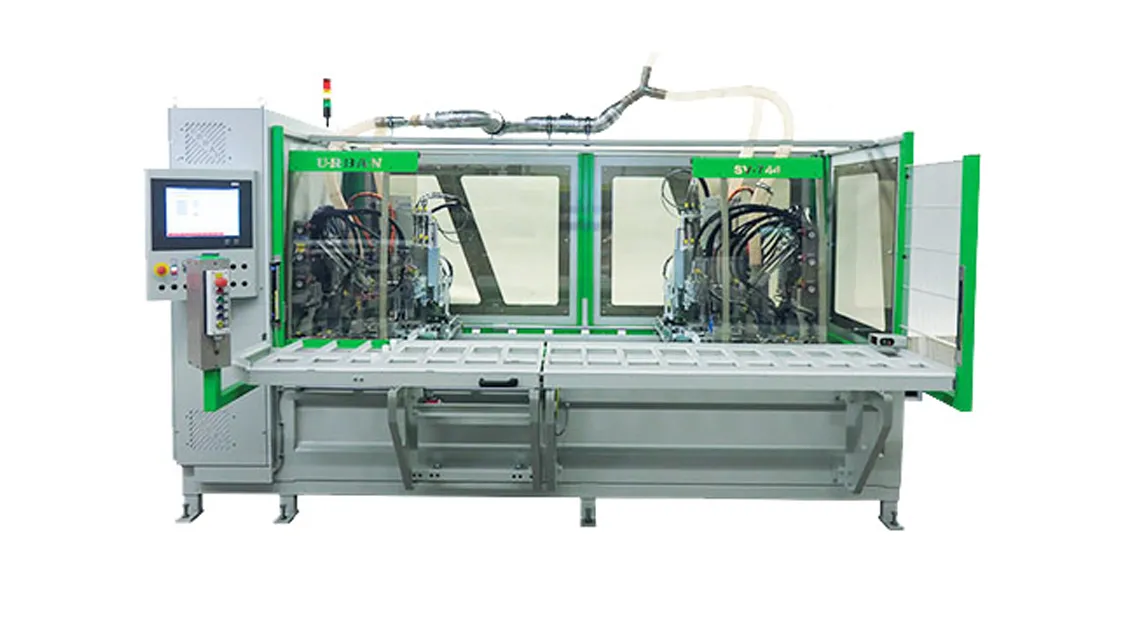

2-Head CNC Flexible Sash Cleaner
The SV 744 is a 2 head, high speed Multi-Axis Sash Cleaner ideally suited for Hung, Slider & Casement profiles.
Windows based CNC control With flexible tooling options from 4 to 11 servo axes. Very fast and consistent self centring tools. Due to a perfect tool setup, manual touch up is minimized. New self-centering cutting heads shift to the profile centerline resulting in a Perfect Clean.
Features
- Extensive range of cleaning and processing options
- Fast cycle times achieved by simultaneous cleaning of interior and exterior contours
- Windows Industrial Touch PC – fully programmable – USB, Network & Online support per TeamViewer
- User-friendly interface with menu-driven maintenance and self diagnostic functions
- Automatic profile identification or Barcode to eliminate set-up and promote fast and safe operation
- Moveable head options include; Manual positioning or servo axis driven
- Capable of single-head-machining
Tool Options on each Cleaning Head include
- Upper & lower horizontal surface knives
- Upper & lower vertical inside surface knives
- Disk cutter
- Upper & lower vertical router/spot drills
- Tilt latch routers (1,0 kW, 1.4 HP) by servo axis motion
- Pivot bar drill/routing – fully programmable by servo axis motion
- Glazing leg knife
- Night latch routing
- Reinforcement recognition
- Dust collection system
