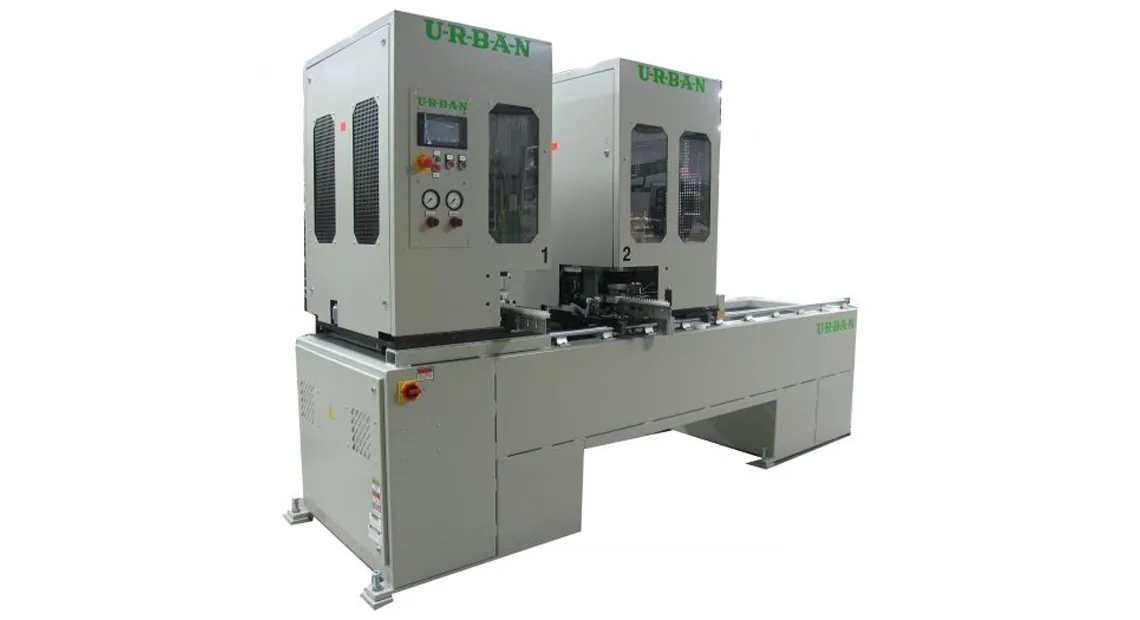

2-Head CNC Weldseam Cleaner
A basic, two head, 4 servo axis motion control system (2 axis per head) developed for hung/slider sash system cleaner, with basic profile ID and hung system sash-processing capabilities, tilt latch and pivot bar.
All four axis are driven by high-speed servomotors with circular interpolation capability for radius machining. The Human Machine Interface (HMI) is an industrial touch pad interface, with URBAN standard SV menu operating structure. Diagnostic and Alarm page for troubleshooting, errors are reported to alarm page where they are listed and can guide operator’s maintenance and service.
Features
- An extensive range of cleaning and processing options
- Industrial PLC control system complete with quick start-up and shut-down
- The movable head is manually adjustable and lightweight
- Flash card for easy file transfer
- A rugged welded base frame construction of 5.0 mm (3/16”) heavy gauge sheet metal
- Easy access to tooling from both sides of the cover, facilitate access for easy setup and service
- Capable of single-head machining

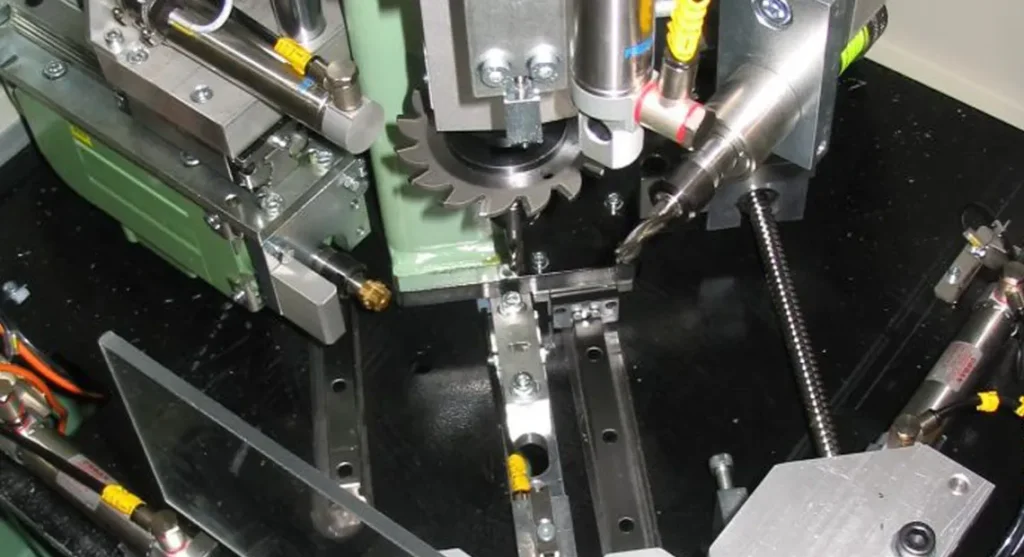

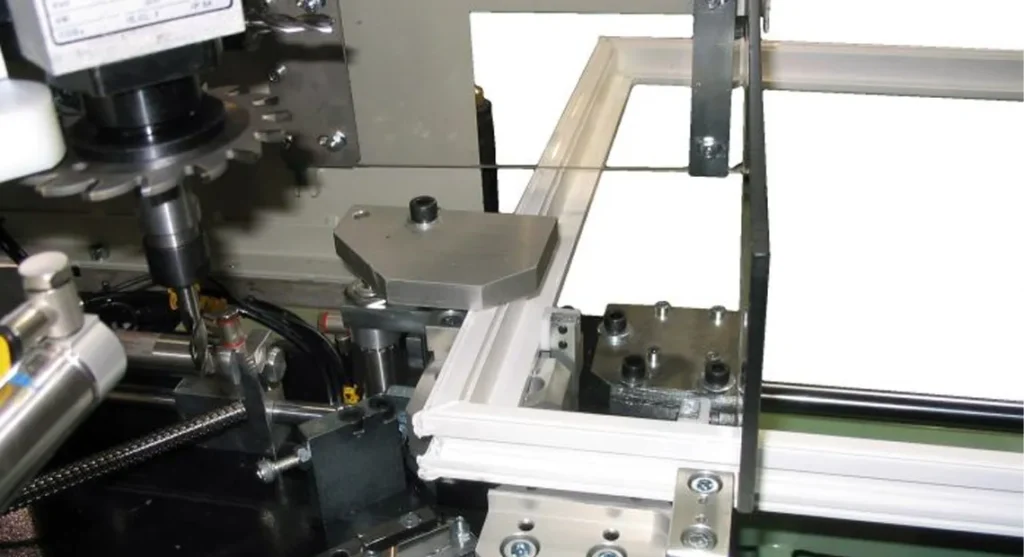

Standard Tools on each cleaning head include
- Upper & Lower horizontal scarfing knives (raised, grooved, or flush finish)
- Upper vertical routers/spot drills
- Disk cutter
Optional cleaning and processing tools include
- Tilt latch routers (1.0 kW, 1.4 HP)
- Pivot bar drills/routing (routing vertical and horizontal slots)
